LNR SERIES
Laser sheet-tube integrated machine
Video Show ![Video Show]()
Laser sheet-tube integrated machine

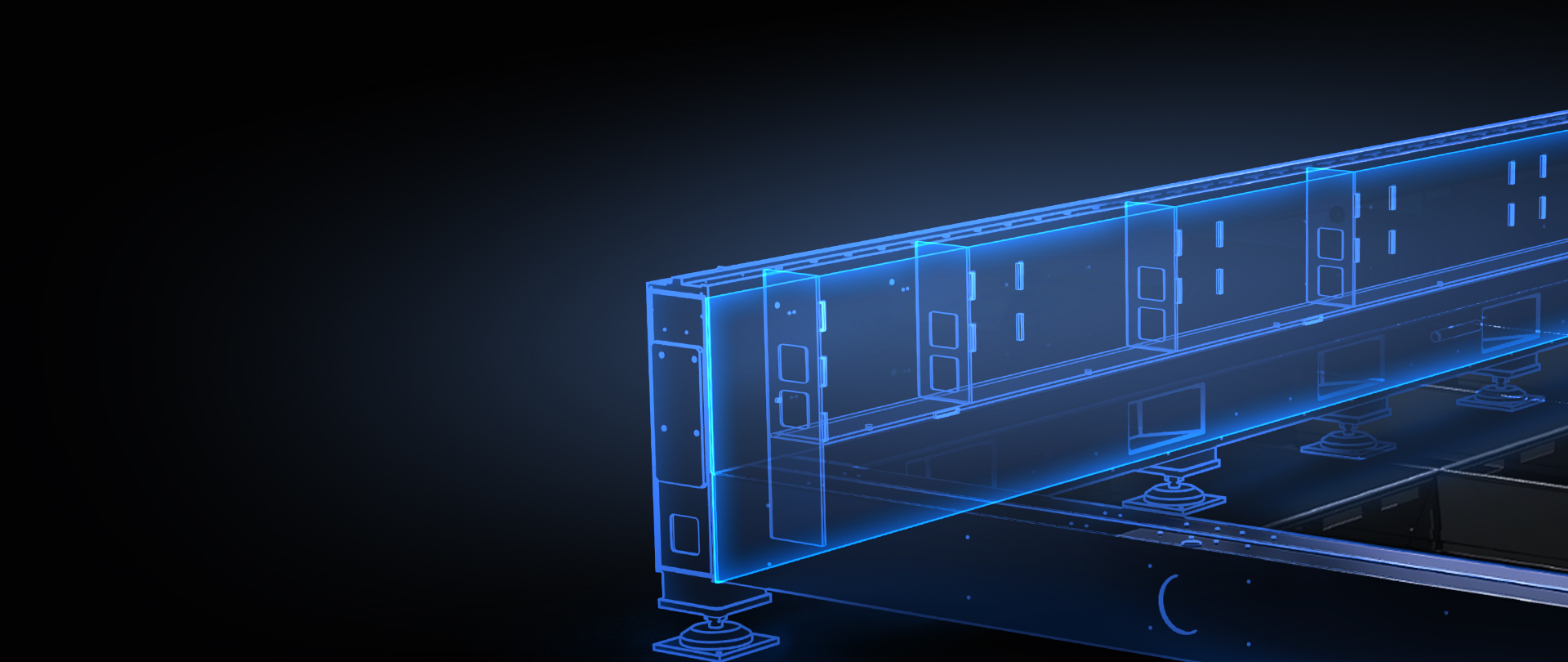

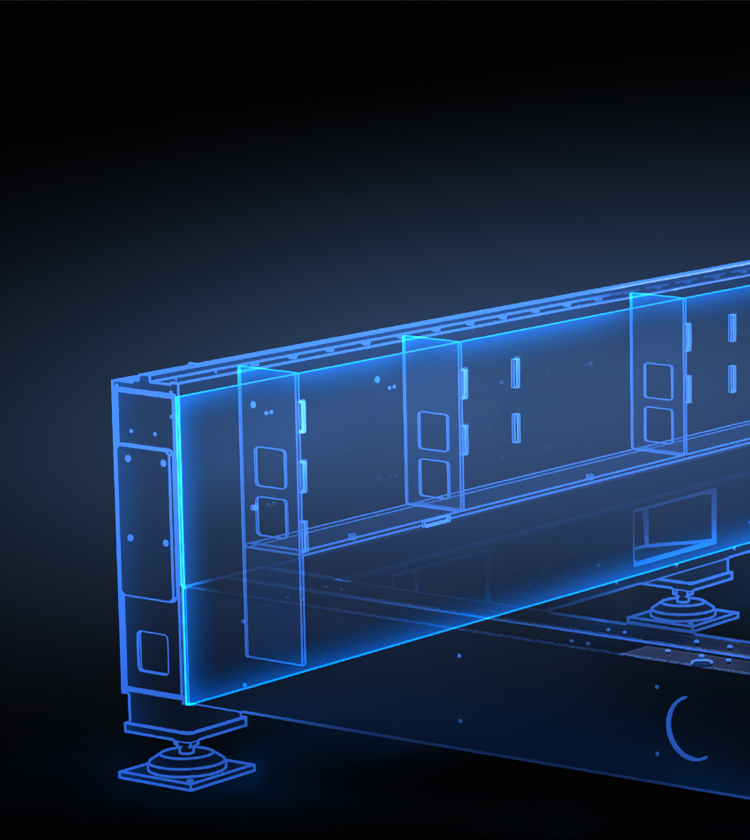

Mortise-riveted welding bed with internal reinforcement and stress-relief annealing technology, enhancing bed strength and tensile resistance.

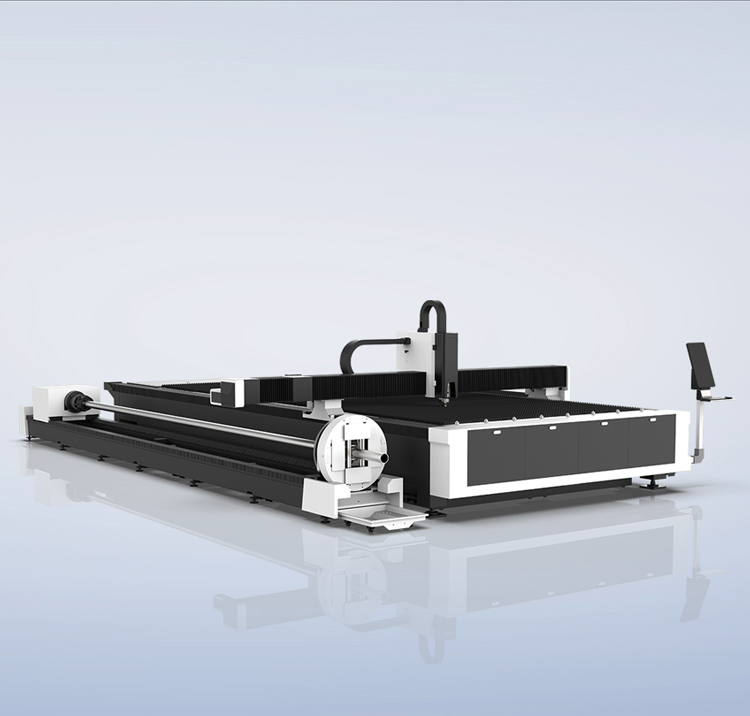

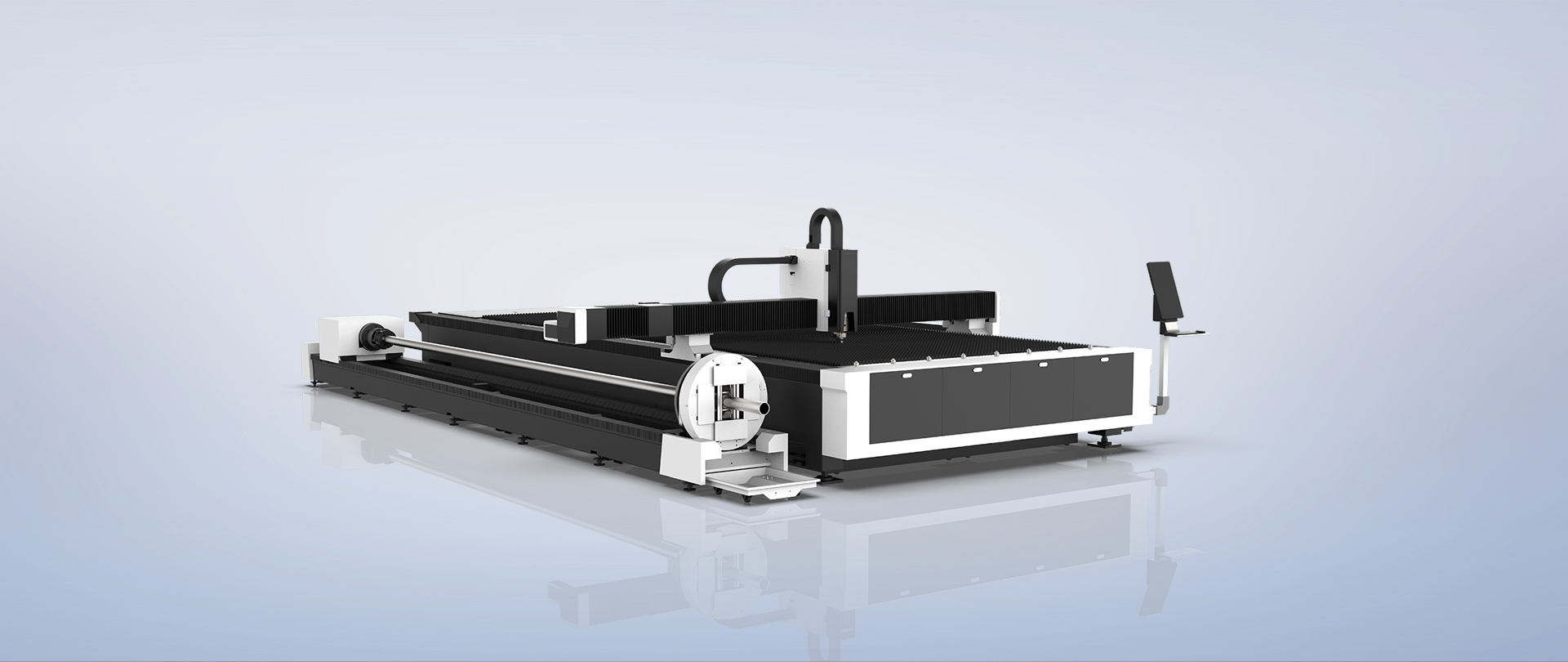

One device meets the dual requirements of cutting pipes and sheets, saving costs and space.

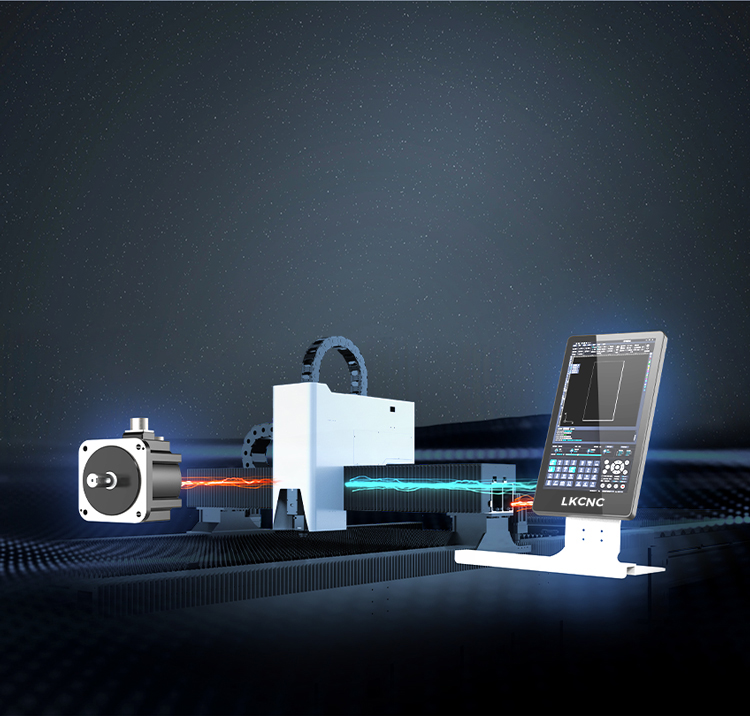

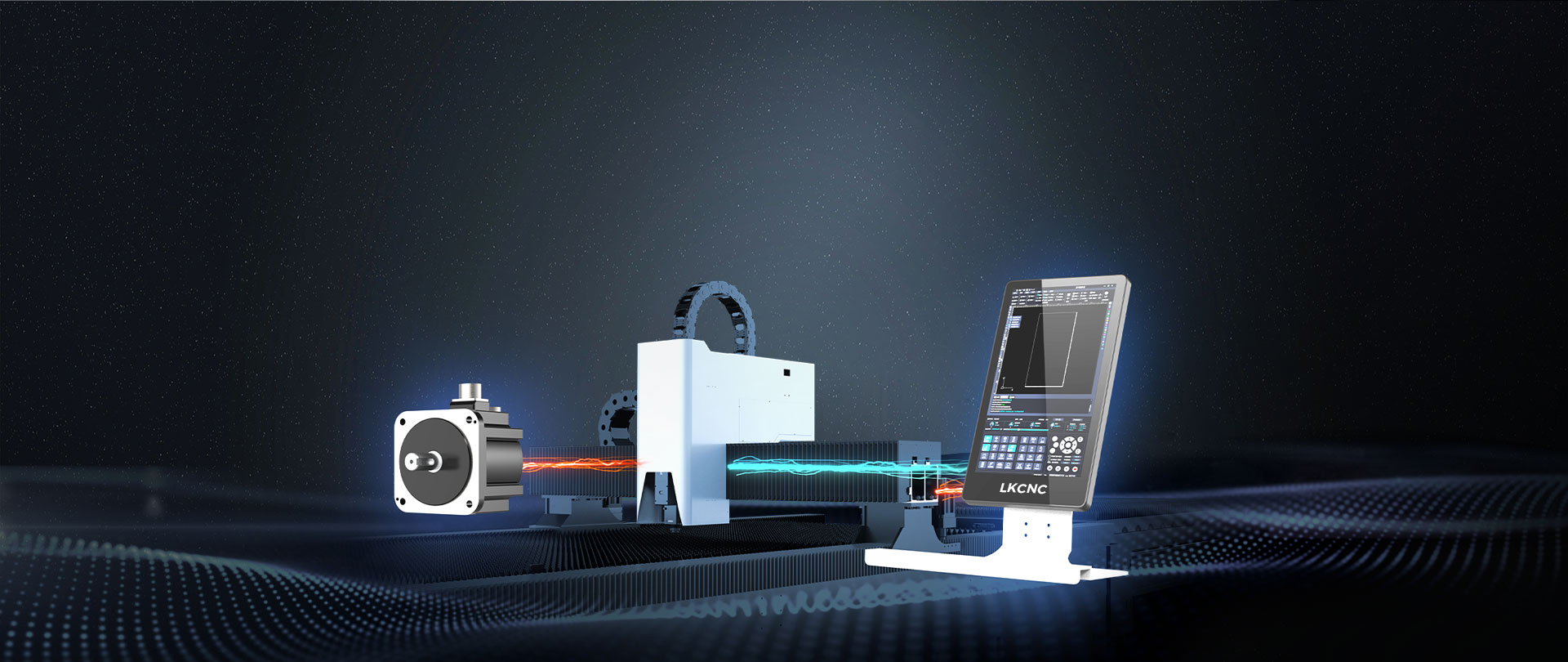

User-friendly interface, powerful system functions, easy deployment, and convenient operation, significantly lowering the human entry threshold.
Elevator manufacturing, automobile manufacturing, engineering machinery, fitness equipment, oil pipelines, sheet metal processing.
| LKF3015LNR
LNR Series |
LKF6025LNR
LNR Series |
| 3000*1500mm Working area | 6000*2500mmWorking area |
| 1000W/2000W/3000W/4000W(Optional)Laser power | 1000W/2000W/3000W/4000W(Optional)Laser power |
| ±0.02mm x/y axis repeat positioning accuracy | ±0.02mm x/y axis repeat positioning accuracy |
| 4520*3985*1985mmDimensions | 7800*5080*2000mmDimensions |
| Round pipe Φ20-240mm Square pipe 口20-240mm Clamping range |
Round pipe Φ20-240mm Square pipe 口20-240mm Clamping range |
| 240 Pneumatic ChuckChuck structure | 240 Pneumatic ChuckChuck structure |
| 380V 50Hz/60Hz Power rated voltage and frequency | 380V 50Hz/60Hz Power rated voltage and frequency |
