LKF- M3015G
Three-Dimensional Five-Axis Laser Cutting Machine
Video Show ![Video Show]()
Three-Dimensional Five-Axis Laser Cutting Machine
Rotation Worktable with Single Rotation Time < 3s, Single Column Cutting Time Within 50 Seconds

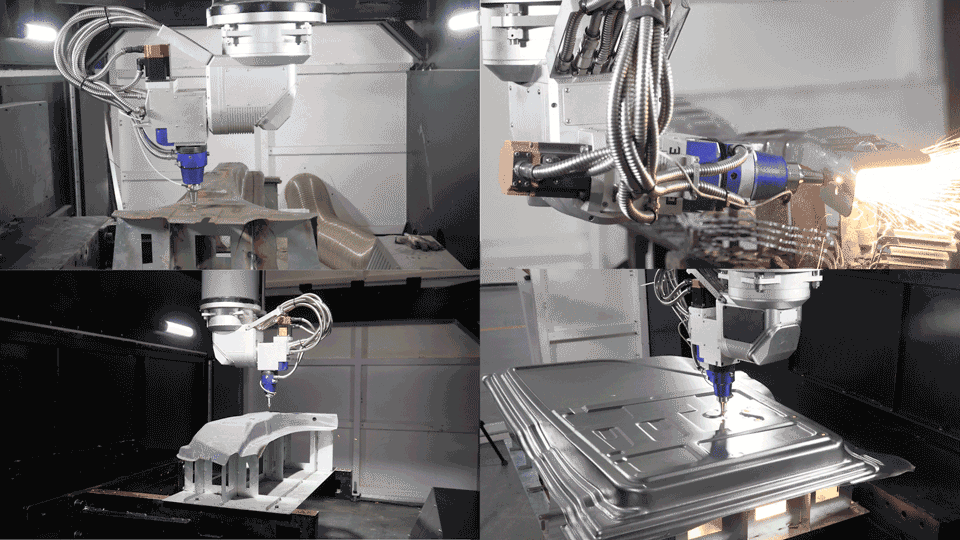

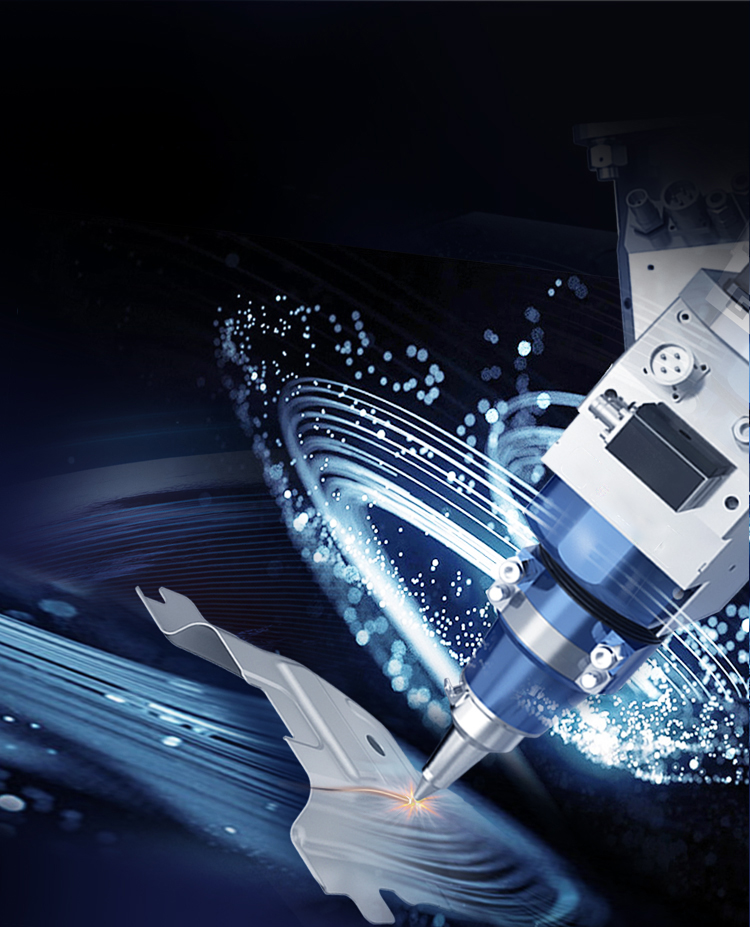

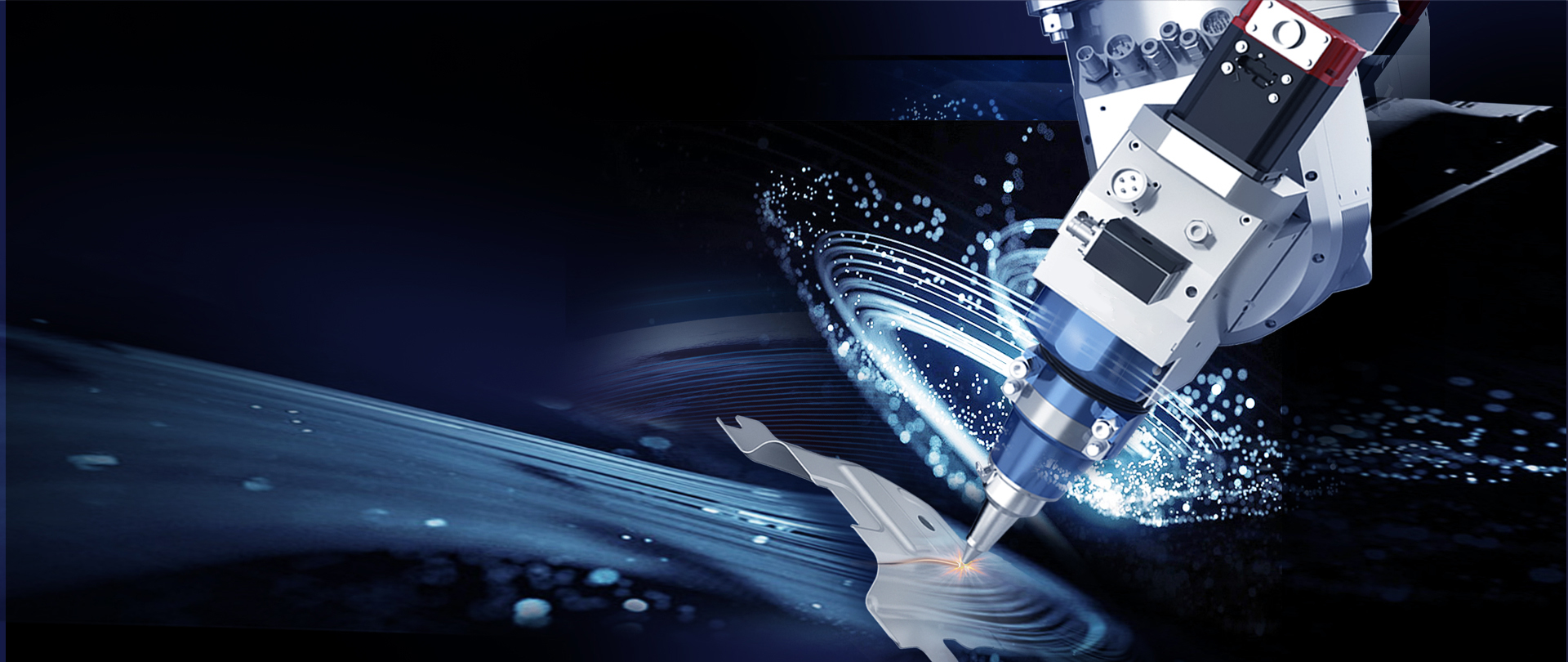

Combining optical principles, mathematical algorithms, etc., it can achieve N*360° rotation, ±135° swing. Stable optical characteristics, 360-degree collision prevention to protect the cutting head safety.

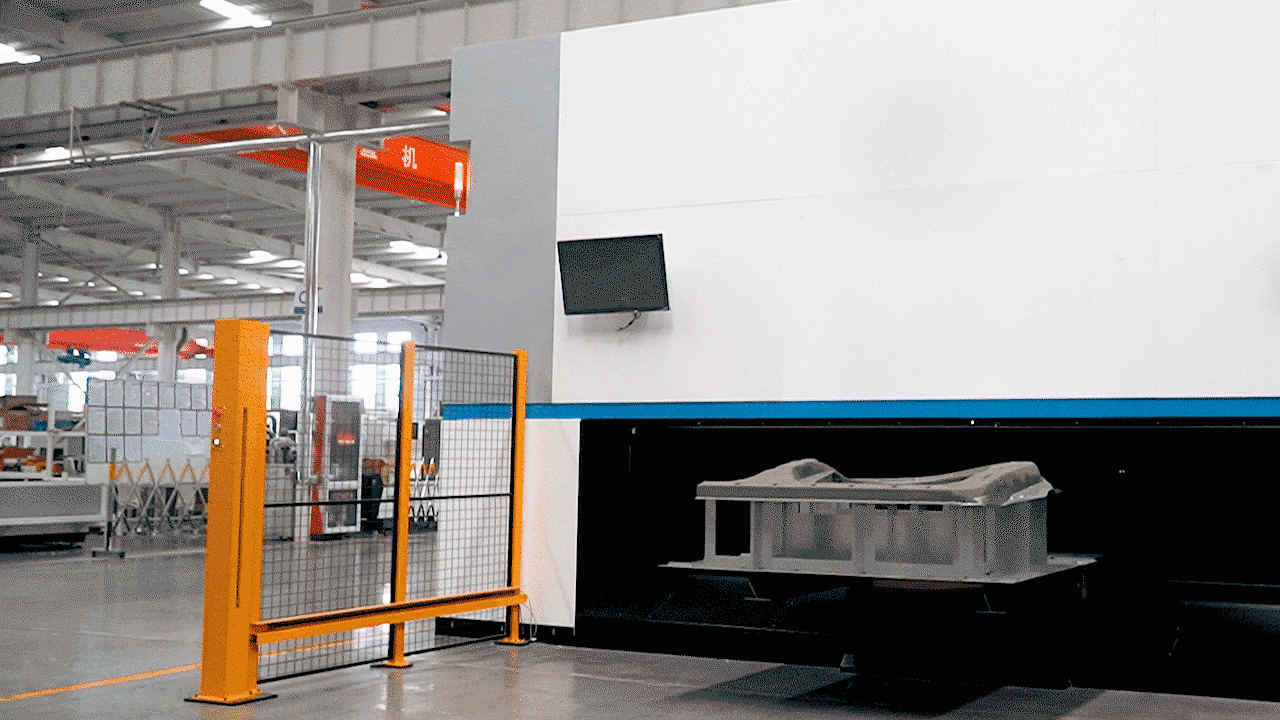

Incorporates safety features like safety light curtains, external protective covers, monitoring devices, observation windows, ensuring operator safety.

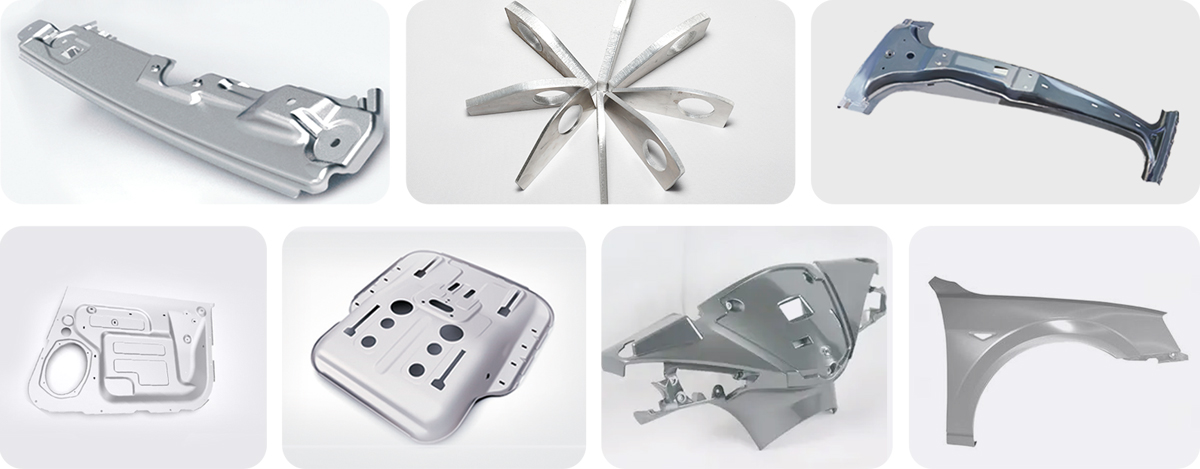

Automotive manufacturing, aerospace, prototype mold making, rail transportation, engineering machinery
| LKF-M3015G |
LKF-M3122G |
LKF-M4025G |
| X axis≥3000mm、Y axis≥1500mm 、 Z axis≥650mm Distance |
X axis≥3100mm、Y axis≥2200mm 、 Z axis≥650mm Distance |
X axis≥4000mm、Y axis≥2500mm 、 Z axis≥750mm Distance |
| X/Y/Z axis ≥100m/minSpeed | X/Y/Z axis ≥100m/minSpeed | X/Y/Z axis ≥80m/minSpeed |
| 10m/s²X/Y/Z axis acceleration | 10m/s²X/Y/Z axis acceleration | 10m/s²X/Y/Z axis acceleration |
| ±0.05mmPositioning accuracy | ±0.05mmPositioning accuracy | ±0.05mmPositioning accuracy |
| ±0.03mmRepeat positioning accuracy | ±0.03mmRepeat positioning accuracy | ±0.03mmRepeat positioning accuracy |
| Three-dimensional five-axis cutting headLKCNC |
Three-dimensional five-axis cutting headLKCNC |
Three-dimensional five-axis cutting headLKCNC |
| C axis Nx360°、A axis±135°Distance | C axis Nx360°、A axis±135°Distance | C axis Nx360°、A axis±135°Distance |
| C/A axis≥90r/minSpeed | C/A axis≥90r/minSpeed | C/A axis≥90r/minSpeed |
| C/A axis≥90rad/s²Acceleration | C/A axis≥90rad/s²Acceleration | C/A axis≥90rad/s²Acceleration |
| C/A axis±0.015°Positioning accuracy | C/A axis±0.015°Positioning accuracy | C/A axis±0.015°Positioning accuracy |
| C/A axis±0.005°Repeat positioning accuracy | C/A axis±0.005°Repeat positioning accuracy | C/A axis±0.005°Repeat positioning accuracy |
